Normal Foam
- Maximum recommended width
- 3.50 m
- Weight per metre
- 2.50 kg
Technical Specifications
BK Shutter Profile & Control Options
Review the supplied profile data, operating options, available colours and warranty coverage used when planning suitable shutter systems for properties in Sharm El Sheikh.
Materials & source
Selected Materials for Reliable Daily Use
Sharm Shutters uses selected shutter materials supplied through Nile Company, including the BK Shutter profile featured in this technical section. Final suitability, dimensions and operating configuration are confirmed after inspection and measurement of the property.
BK Shutter
| Specification | Supplied value |
|---|---|
| Profile/slat name | BK Shutter |
| Slat coverage height | 50 mm |
| Profile depth | 10.90 mm |
| Aluminium thickness | 0.27 mm |
| Number of slats per metre | 20 |
| Manufacturing material | High-quality aluminium |
| Filling options | Normal foam; high-density foam |
| Maximum recommended width with normal foam | 3.50 m |
| Maximum recommended width with high-density foam | 4.50 m |
| Weight per metre with normal foam | 2.50 kg |
| Weight per metre with high-density foam | 3.3 kg |
Available Profile Colours
White
White Beige
Dark Gray
Colour availability should be confirmed when preparing the quotation.
Foam Filling Options
High-Density Foam
- Maximum recommended width
- 4.50 m
- Weight per metre
- 3.3 kg
Foam selection and the final profile configuration should be confirmed according to the opening dimensions, operating requirements and site assessment.
Rolling Size Guidance
| Box size | 6 cm tube | 7 cm tube |
|---|---|---|
| 15 cm | 125 cm | 100 cm |
| 18 cm | 200 cm | 175 cm |
| 20.5 cm | 275 cm | 225 cm |
| 22.5 cm | 330 cm | 300 cm |
| 25 cm | 400 cm | 400 cm |
The table reproduces the rolling-size guidance shown in the supplied BK Shutter datasheet. Final box, tube and height selection must be confirmed by the technical team after measurement.
Control Options
Wall Switch
Straightforward fixed wall control for suitable electric shutter installations.
Receiver Switch & Remote Control
A receiver-enabled control configuration allowing operation by wireless remote control.
Smart Wi-Fi Switch
Smart control through a compatible mobile application and Wi-Fi connection.
Control availability and compatibility depend on the selected motor, electrical preparation and project requirements.
Manual or Electric Operation
The recommended operating method is selected according to opening size, frequency of use, access, electrical preparation and customer preference.
- Manual operation
- Electric motor operation
- Wall switch control
- Receiver and remote-control operation
- Smart Wi-Fi switch with mobile application
Warranty Coverage
Motors
Coverage against manufacturing defects.
Shutters and Aluminium Profiles
Coverage against manufacturing defects.
Support
- Maintenance service
- Technical support
- Spare parts when required
Warranty coverage applies against manufacturing defects and remains subject to the approved quotation, correct operation, installation conditions and the final warranty terms supplied with the project.
Benefits of Roller Shutters
Security & Protection
- Additional protection for homes, shops and villas
- Helps reduce opportunities for theft and unauthorised entry
- Increased privacy
Thermal Comfort
- Helps reduce heat transfer into the property
- Supports a more comfortable indoor temperature
- May help reduce reliance on air conditioning and electricity consumption
Light Control
- Control the amount of incoming light
- Full blackout can be achieved where the selected system and installation allow it
Noise Reduction
- Helps reduce external noise
- Supports a quieter indoor environment
Weather Resistance
- Suitable for direct-sunlight conditions
- Protection against dust and sand
- Designed for exposure to rain and wind
- Suitable for coastal environments such as Sharm El Sheikh
Privacy
- Supports privacy in homes, villas, apartments and chalets
Ease of Use
- Manual or electric operation
- Remote-control option
- Smart-control option according to the selected motor and control configuration
Material Quality
Selected materials and finishes are chosen to support regular use and complement different properties.
- High-quality aluminium designed to resist rust and corrosion
- Exterior coatings designed for UV exposure
- Materials intended for regular daily use
- Contemporary finishes suitable for different architectural façades
- Polyurethane foam filling available where specified
Where Sharm Shutters Can Be Used
- Villas
- Homes
- Apartments
- Commercial stores
- Restaurants and cafés
- Hotels and resorts
- Administrative offices
- Garages
- Warehouses
Why Choose Sharm Shutters?
- Free inspection inside Sharm El Sheikh
- Measurements taken by a specialised team
- Detailed quotation before implementation
- Made-to-measure manufacturing
- Professional installation by specialised technicians
- Commitment to the agreed implementation schedule
- After-sales service
- Maintenance and technical support
- Use of high-quality motors and materials
- Competitive pricing with a strong focus on quality
Original reference

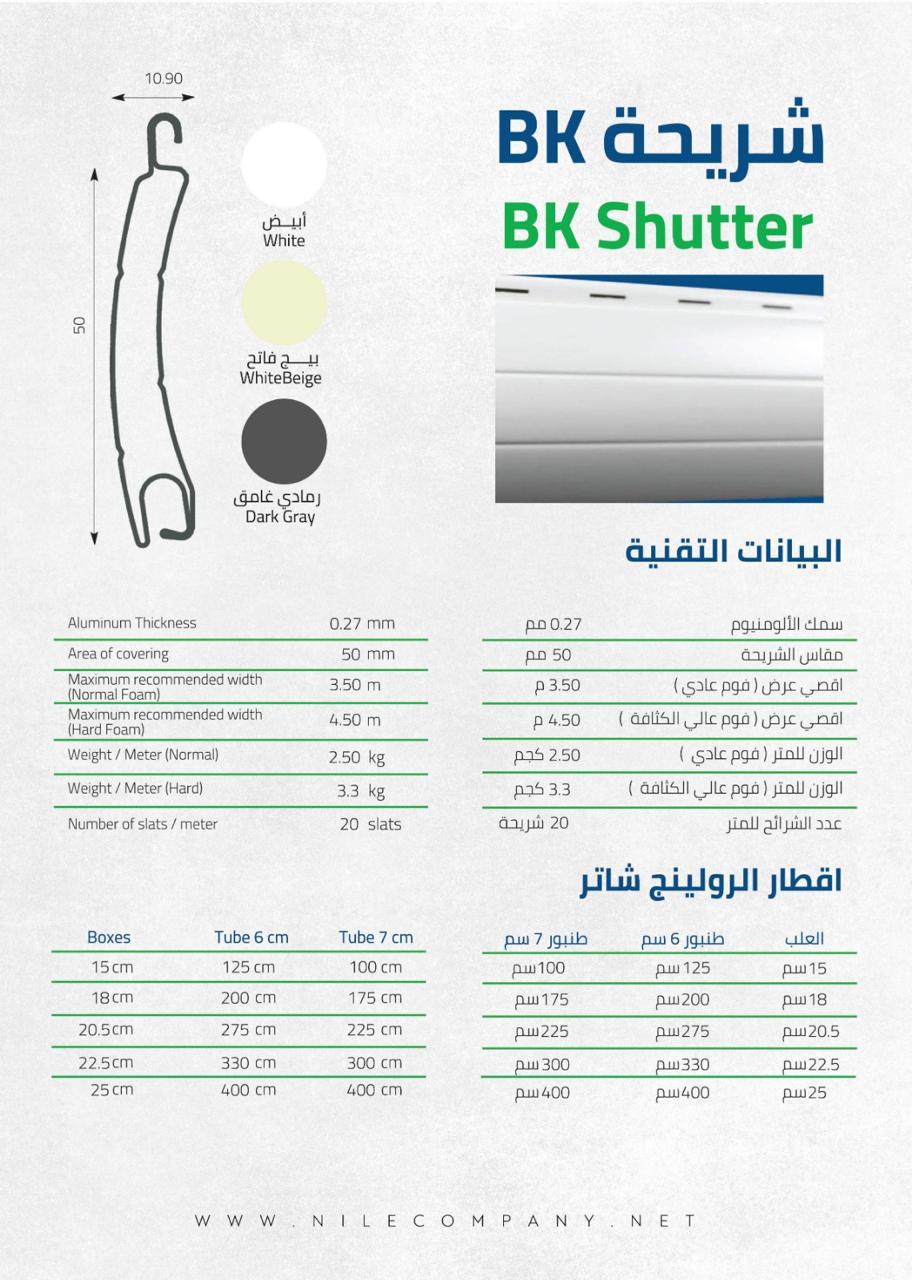

Original BK Shutter Datasheet
Technical profile data shown on this page is based on the supplied Nile Company BK Shutter datasheet.
View Full Technical Datasheet
